02. Spring MVC 게시판 구현①

1. 프로젝트 생성

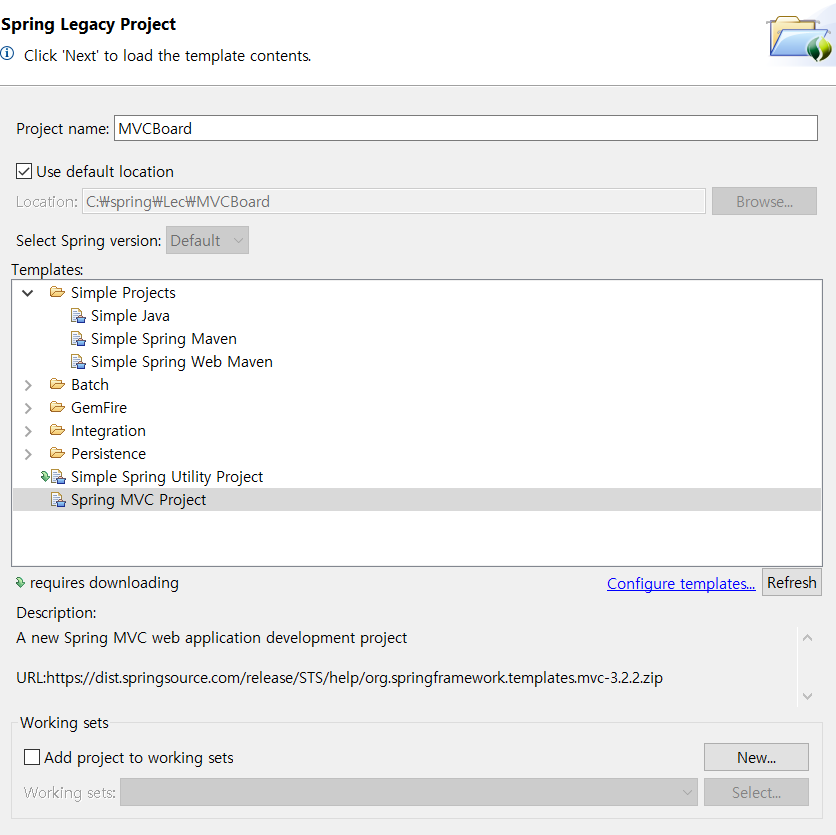

Spring Legacy Project -> Project name 입력 -> Spring MVC Project 선택  -> 생성

- web.xml, Servlet-context.xml spring 에서 자동으로 설정

- web.xml에 한글 인코딩만 추가해줌

	<!--  한글처리       -->
	<filter>
		<filter-name>encodingFilter</filter-name>
 		<filter-class>org.springframework.web.filter.CharacterEncodingFilter</filter-class>

 		<init-param>
			<param-name>encoding</param-name>
			<param-value>UTF-8</param-value>
		</init-param>
		<init-param>
			<param-name>forceEncoding</param-name>
			<param-value>true</param-value>
		</init-param>
	</filter>

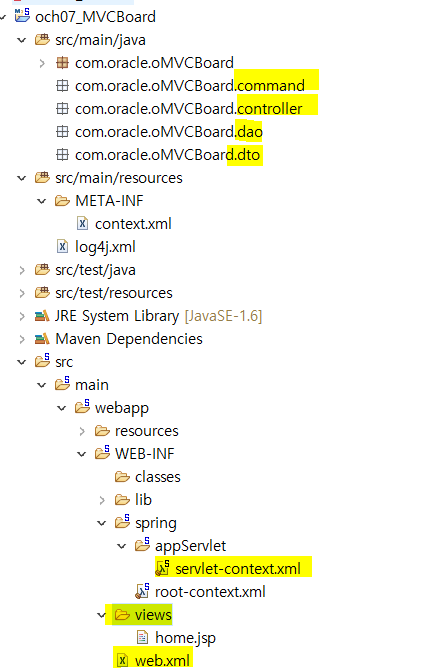

2. java package 생성

- controller -> [command(service), dao, dto]

- view 는 jsp

3.pom.xml 설정

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
	xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 https://maven.apache.org/maven-v4_0_0.xsd">
	<modelVersion>4.0.0</modelVersion>
	<groupId>com.oracle</groupId>
	<artifactId>oMVCBoard</artifactId>
	<name>och07_MVCBoard</name>
	<packaging>war</packaging>
	<version>1.0.0-BUILD-SNAPSHOT</version>
	<properties>
		<java-version>11</java-version>
		<org.springframework-version>4.3.7.RELEASE</org.springframework-version>
		<org.aspectj-version>1.6.10</org.aspectj-version>
		<org.slf4j-version>1.6.6</org.slf4j-version>
	</properties>
	<dependencies>
		<dependency>
			<groupId>org.springframework</groupId>
			<artifactId>spring-orm</artifactId>
			<version>${org.springframework-version}</version>
		</dependency>
		<dependency>
			<groupId>org.springframework</groupId>
			<artifactId>spring-test</artifactId>
			<version>${org.springframework-version}</version>
		</dependency>
		<dependency>
			<groupId>org.springframework</groupId>
			<artifactId>spring-jdbc</artifactId>
			<version>${org.springframework-version}</version>
		</dependency>
		<dependency>
			<groupId>org.hibernate</groupId>
			<artifactId>hibernate-validator</artifactId>
			<version>5.1.3.Final</version>
		</dependency>
		<!-- oracle -->
 		<dependency>
			<groupId>com.oracle</groupId>
			<artifactId>ojdbc6</artifactId>
			<version>11.2.0.3</version>
			<scope>compile</scope>
		</dependency>

<!-- 		<dependency>
			<groupId>com.oracle</groupId>
			<artifactId>ojdbc7</artifactId>
			<version>12.1.0.2.0</version>
			<scope>system</scope>
			<systemPath>${basedir}/src/main/webapp/WEB-INF/lib/ojdbc7.jar</systemPath>
		</dependency>
 -->


		<!-- dbcp jdbc connection pool -->
		<dependency>
			<groupId>commons-dbcp</groupId>
			<artifactId>commons-dbcp</artifactId>
			<version>1.2.2</version>
		</dependency>
		<dependency>
			<groupId>c3p0</groupId>
			<artifactId>c3p0</artifactId>
		<version>0.9.1.2</version>
	</dependency>
		<!-- mybatis -->
		<dependency>
        	<groupId>org.mybatis</groupId>
        	<artifactId>mybatis</artifactId>
        	<version>3.2.3</version>
        </dependency>
        <dependency>
        	<groupId>org.mybatis</groupId>
        	<artifactId>mybatis-spring</artifactId>
        	<version>1.2.1</version>
        </dependency>
		<!-- ibatis -->
		<dependency>
			<groupId>org.apache.ibatis</groupId>
			<artifactId>ibatis-sqlmap</artifactId>
			<version>2.3.4.726</version>
		</dependency>
		<dependency>
			<groupId>org.springframework</groupId>
			<artifactId>spring-ibatis</artifactId>
			<version>2.0.8</version>
		</dependency>
		<!-- cglib ibatis를 위한 프록시 라이브러리 -->
		<dependency>
			<groupId>cglib</groupId>
			<artifactId>cglib</artifactId>
			<version>2.2</version>
		</dependency>
		<!-- Spring -->
		<dependency>
			<groupId>org.springframework</groupId>
			<artifactId>spring-context</artifactId>
			<version>${org.springframework-version}</version>
			<exclusions>
				<!-- Exclude Commons Logging in favor of SLF4j -->
				<exclusion>
					<groupId>commons-logging</groupId>
					<artifactId>commons-logging</artifactId>
				</exclusion>
			</exclusions>
		</dependency>
		<dependency>
			<groupId>org.springframework</groupId>
			<artifactId>spring-webmvc</artifactId>
			<version>${org.springframework-version}</version>
		</dependency>

		<!-- AspectJ -->
		<dependency>
			<groupId>org.aspectj</groupId>
			<artifactId>aspectjrt</artifactId>
			<version>${org.aspectj-version}</version>
		</dependency>
		<dependency>
			<groupId>org.aspectj</groupId>
			<artifactId>aspectjweaver</artifactId>
			<version>1.6.8</version>
		</dependency>

		<!-- Logging -->
		<dependency>
			<groupId>org.slf4j</groupId>
			<artifactId>slf4j-api</artifactId>
			<version>${org.slf4j-version}</version>
		</dependency>
		<dependency>
			<groupId>org.slf4j</groupId>
			<artifactId>jcl-over-slf4j</artifactId>
			<version>${org.slf4j-version}</version>
			<scope>runtime</scope>
		</dependency>
		<dependency>
			<groupId>org.slf4j</groupId>
			<artifactId>slf4j-log4j12</artifactId>
			<version>${org.slf4j-version}</version>
			<scope>runtime</scope>
		</dependency>
		<dependency>
			<groupId>log4j</groupId>
			<artifactId>log4j</artifactId>
			<version>1.2.15</version>
			<exclusions>
				<exclusion>
					<groupId>javax.mail</groupId>
					<artifactId>mail</artifactId>
				</exclusion>
				<exclusion>
					<groupId>javax.jms</groupId>
					<artifactId>jms</artifactId>
				</exclusion>
				<exclusion>
					<groupId>com.sun.jdmk</groupId>
					<artifactId>jmxtools</artifactId>
				</exclusion>
				<exclusion>
					<groupId>com.sun.jmx</groupId>
					<artifactId>jmxri</artifactId>
				</exclusion>
			</exclusions>
			<scope>runtime</scope>
		</dependency>

		<!-- @Inject -->
		<dependency>
			<groupId>javax.inject</groupId>
			<artifactId>javax.inject</artifactId>
			<version>1</version>
		</dependency>

		<!-- Servlet -->
		<dependency>
			<groupId>javax.servlet</groupId>
			<artifactId>servlet-api</artifactId>
			<version>2.5</version>
			<scope>provided</scope>
		</dependency>
		<dependency>
			<groupId>javax.servlet.jsp</groupId>
			<artifactId>jsp-api</artifactId>
			<version>2.1</version>
			<scope>provided</scope>
		</dependency>
		<dependency>
			<groupId>javax.servlet</groupId>
			<artifactId>jstl</artifactId>
			<version>1.2</version>
		</dependency>
		<dependency>
			<groupId>org.apache.tiles</groupId>
			<artifactId>tiles-jsp</artifactId>
			<version>2.2.2</version>
		</dependency>
		<!-- Test -->
		<dependency>
			<groupId>junit</groupId>
			<artifactId>junit</artifactId>
			<version>4.7</version>
			<scope>test</scope>
		</dependency>
		<dependency>
			<groupId>commons-fileupload</groupId>
			<artifactId>commons-fileupload</artifactId>
			<version>1.2</version>
		</dependency>

		<!-- Spring Security -->
		<dependency>
            <groupId>org.springframework.security</groupId>
            <artifactId>spring-security-core</artifactId>
            <version>3.2.4.RELEASE</version>
        </dependency>
        <dependency>
            <groupId>org.springframework.security</groupId>
            <artifactId>spring-security-web</artifactId>
            <version>3.2.4.RELEASE</version>
        </dependency>
        <dependency>
            <groupId>org.springframework.security</groupId>
            <artifactId>spring-security-config</artifactId>
            <version>3.2.4.RELEASE</version>
        </dependency>
        <dependency>
        	<groupId>org.springframework.security</groupId>
        	<artifactId>spring-security-taglibs</artifactId>
        	<version>3.1.4.RELEASE</version>
        </dependency>
        <dependency>
        	<groupId>commons-io</groupId>
        	<artifactId>commons-io</artifactId>
        	<version>1.3.2</version>
        </dependency>

        <dependency>
        	<groupId>org.scala-lang</groupId>
        	<artifactId>scala-library</artifactId>
        	<version>2.10.4</version>
        </dependency>


        <!-- java 11 추가 -->
	    <dependency>
	        <groupId>javax.xml.bind</groupId>
	        <artifactId>jaxb-api</artifactId>
	        <version>2.3.0</version>
	    </dependency>
	    <dependency>
	        <groupId>com.sun.xml.bind</groupId>
	        <artifactId>jaxb-impl</artifactId>
	        <version>2.3.0</version>
	    </dependency>
	    <dependency>
	        <groupId>org.glassfish.jaxb</groupId>
	        <artifactId>jaxb-runtime</artifactId>
	        <version>2.3.0</version>
	    </dependency>
	    <dependency>
	        <groupId>javax.activation</groupId>
	        <artifactId>activation</artifactId>
	        <version>1.1.1</version>
	    </dependency>

	</dependencies>

	<build>
		<plugins>
			<plugin>
				<groupId>org.apache.maven.plugins</groupId>
				<artifactId>maven-compiler-plugin</artifactId>
				<configuration>
					<source>${java-version}</source>
					<target>${java-version}</target>
				</configuration>
			</plugin>
			<plugin>
				<groupId>org.apache.maven.plugins</groupId>
				<artifactId>maven-war-plugin</artifactId>
				<configuration>
					<warName>SprMVCBoard</warName>
				</configuration>
			</plugin>
			<plugin>
				<groupId>org.apache.maven.plugins</groupId>
				<artifactId>maven-dependency-plugin</artifactId>
				<executions>
					<execution>
						<id>install</id>
						<phase>install</phase>
						<goals>
							<goal>sources</goal>
						</goals>
					</execution>
				</executions>
			</plugin>
			<plugin>
				<groupId>org.apache.maven.plugins</groupId>
				<artifactId>maven-resources-plugin</artifactId>
				<version>2.5</version>
				<configuration>
					<encoding>UTF-8</encoding>
				</configuration>
			</plugin>
		</plugins>
	</build>
</project>



기본 설정만 마치면

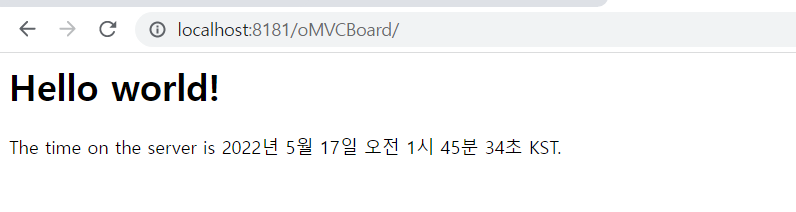

HomeController 실행시~ Hello world!  가 나타남.
